Product Characteristics
| Insert Grade | Machining Condition | Average Particle(μm) | Characteristics | Application Industry |
| CDW10 | Fine Finishing | 2 | High surface roughness，high precision | suit for low content Al-Si alloy, Cu alloy, High precision |
| CDW20 | Roughing, Finishing | 10 | High surface finish, abrasion resistance and impact resistance | widely used for Al, Cu and other non-ferrous metal, Graphite, inorganic composite |
| CDW30 | Roughing | 25 | High abrasive resistance | Suit for abrasive resistant materials and high content Si-Al alloy, roughing process |
Products ISO Models

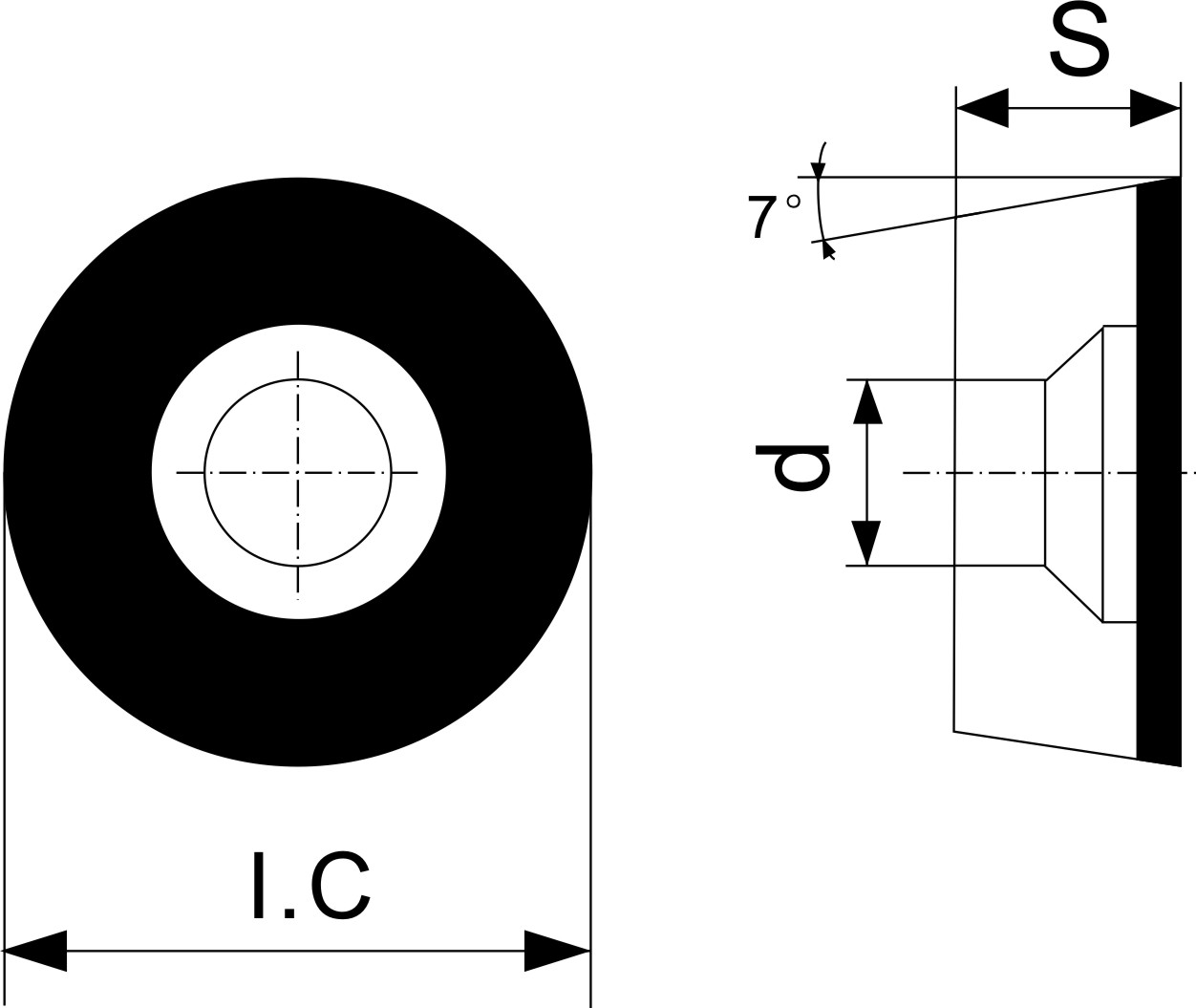

| RCGW PCD Insert | ||||||
 |
||||||
| Models | Dimension | Tips Qty | ||||
| L(mm) | I.C(mm) | S(mm) | d(mm) | r(mm) | ||
|
RCGW060200 |
|
6 |
2.38 |
2.8 |
|
1 |
|
RCGW080300 |
|
8 |
3.18 |
3.4 |
|
1 |
|
RCGW100300 |
|
10 |
3.18 |
3.6 |
|
1 |
|
RCGW120400 |
|
12 |
4.76 |
4.2 |
|
1 |
|

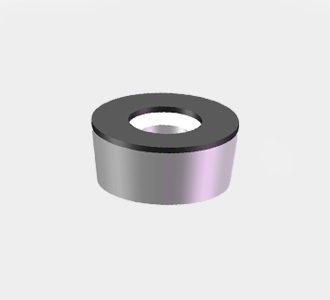

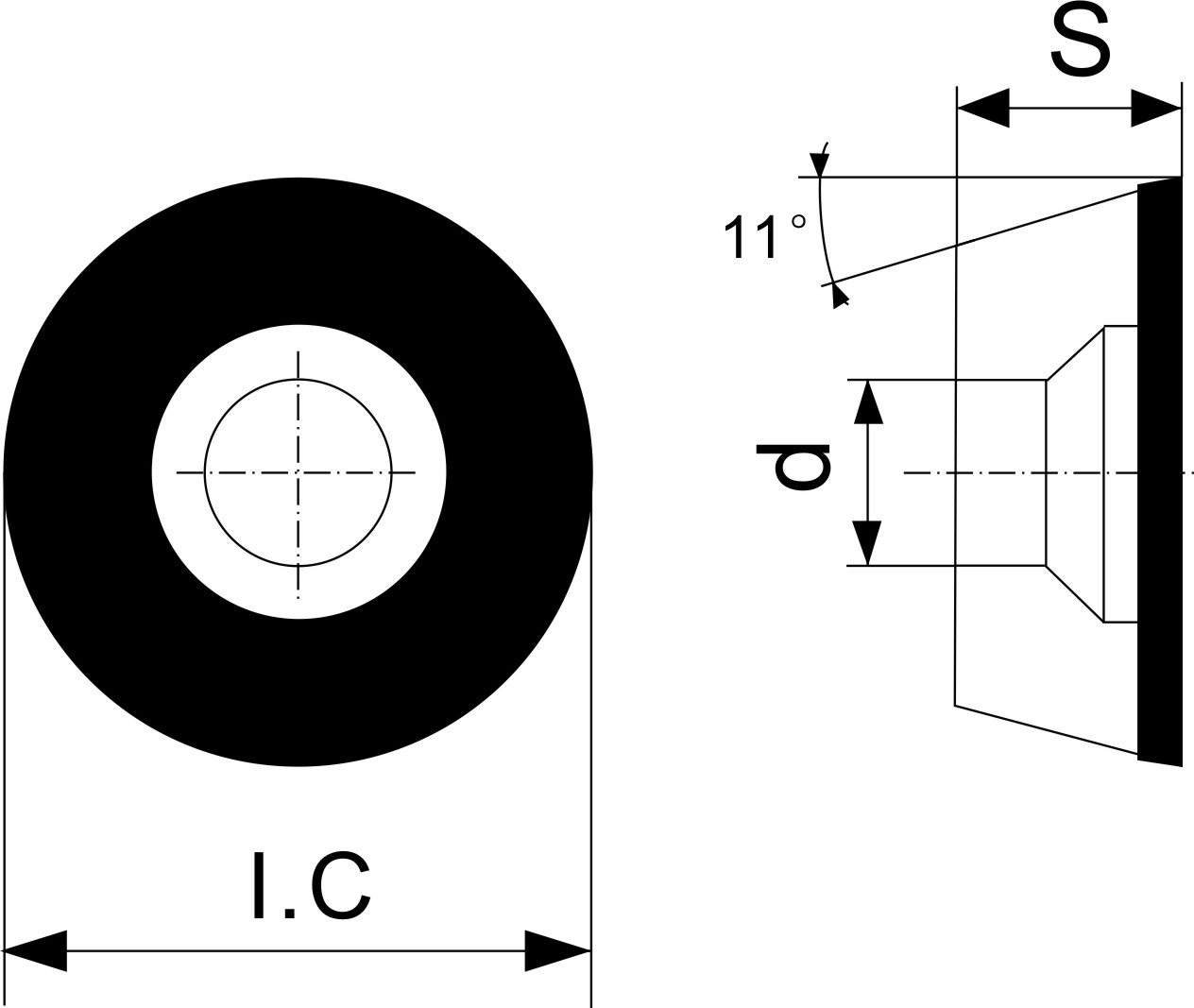

RPGW PCD Insert |
||||||
  |
||||||
| Models | Dimension | Tips Qty | ||||
| L(mm) | I.C(mm) | S(mm) | d(mm) | r(mm) | ||
|
RPGW080300 |
|
8 |
3.18 |
3.4 |
|
1 |
|
RPGW100400 |
|
10 |
4.76 |
3.8 |
|
1 |
|
RPGW120400 |
|
12 |
4.76 |
4.2 |
|
1 |
|
RPGW160400 |
|
16 |
4.76 |
5.2 |
|
1 |
